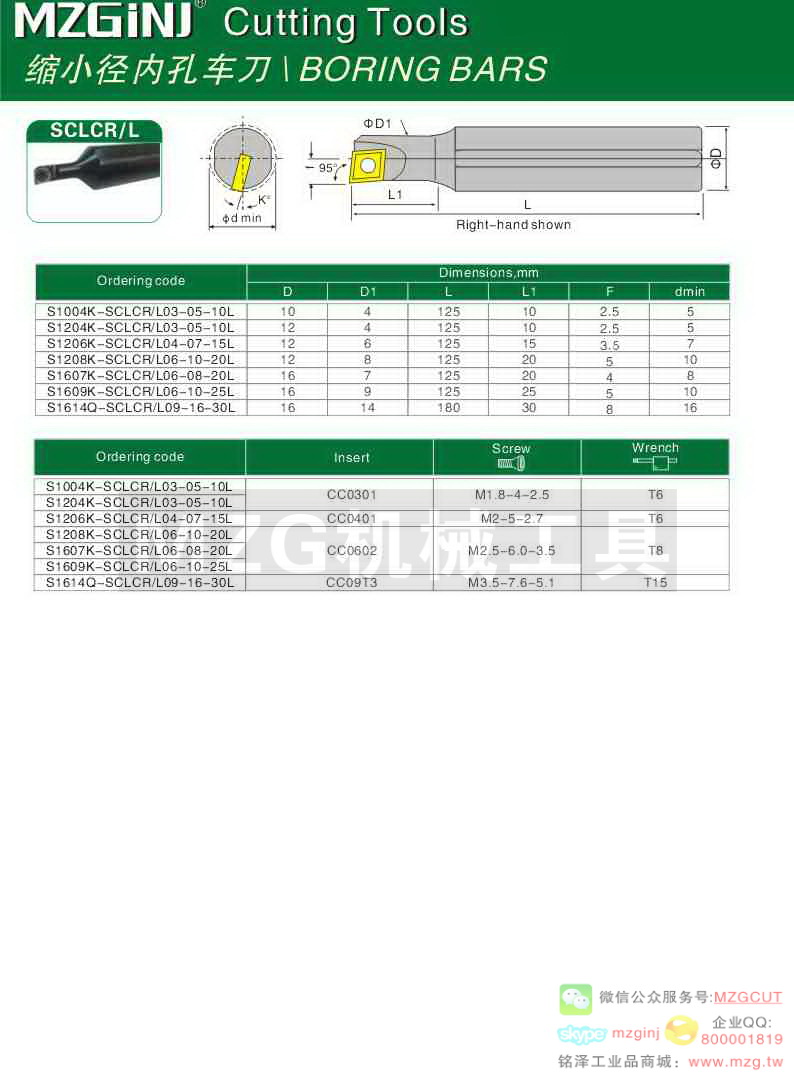

R Cutting Tools Cutting Tools R 缩小径内孔车刀 \ BORING BARS Insert Ordering code Dimensions,mm D L F D1 S1004K-SCLCR/L03-05-10L S1204K-SCLCR/L03-05-10L S1206K-SCLCR/L04-07-15L S1208K-SCLCR/L06-10-20L S1607K-SCLCR/L06-08-20L S1609K-SCLCR/L06-10-25L S1614Q-SCLCR/L09-16-30L 4 4 6 8 7 9 14 10 12 12 12 16 16 16 125 125 125 125 125 125 180 2.5 2.5 3.5 5 4 5 8 Screw M2-5-2.7 M2.5-6.0-3.5 Wrench T6 T8 Cc0401 Cc0602 SCLCR/L dmin 5 5 7 10 8 10 16 L1 10 10 15 20 20 25 30 M1.8-4-2.5 T6 Cc0301 M3.5-7.6-5.1 T15 Cc09T3 K° ød min Right-hand shown øD1 øD L1 L 95° f Ordering code S1004K-SCLCR/L03-05-10L S1204K-SCLCR/L03-05-10L S1206K-SCLCR/L04-07-15L S1208K-SCLCR/L06-10-20L S1607K-SCLCR/L06-08-20L S1609K-SCLCR/L06-10-25L S1614Q-SCLCR/L09-16-30L
