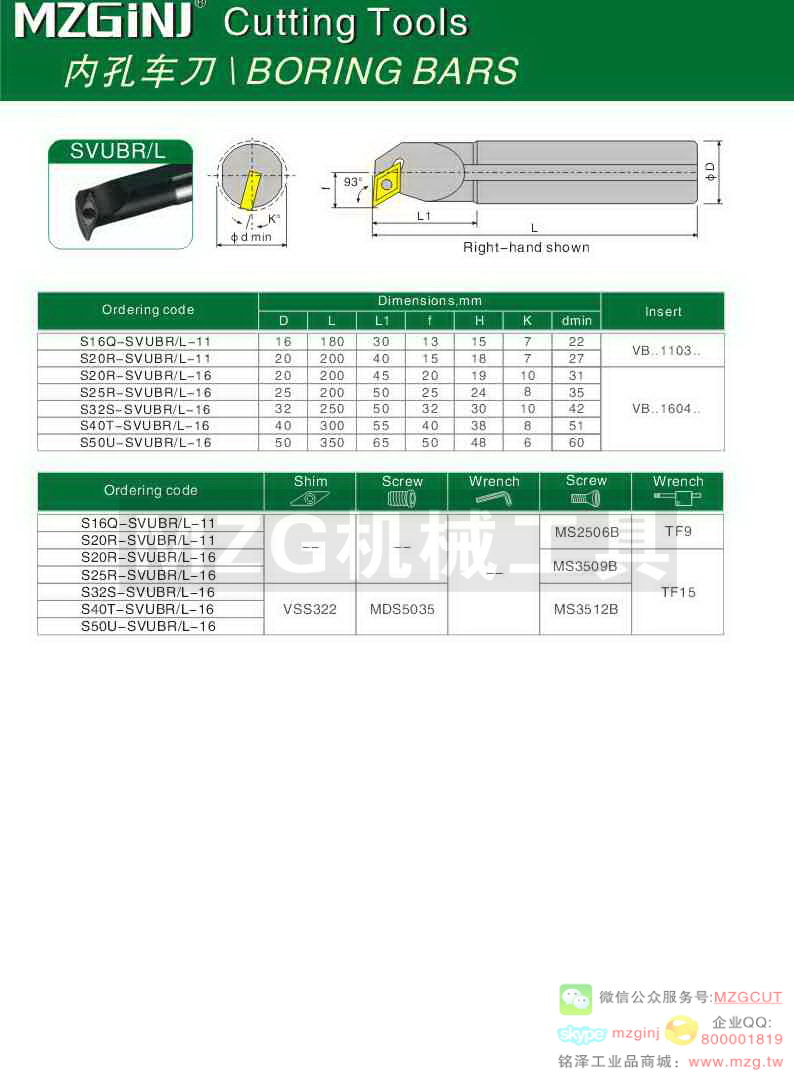

内孔车刀 \ BORING BARS R Cutting Tools Cutting Tools R Insert Shim Wrench Screw Screw Wrench VB..1103.. VB..1604.. -- VSS322 -- MDS5035 -- MS2506B MS3509B TF9 TF15 MS3512B Ordering code Dimensions,mm D L L1 f H K dmin S16Q-SVUBR/L-11 S20R-SVUBR/L-11 S20R-SVUBR/L-16 S25R-SVUBR/L-16 S32S-SVUBR/L-16 S40T-SVUBR/L-16 S50U-SVUBR/L-16 16 20 20 25 32 40 50 180 200 200 200 250 300 350 30 40 45 50 50 55 65 13 15 20 25 32 40 50 15 18 19 24 30 38 48 7 7 10 8 10 8 6 22 27 31 35 42 51 60 SVUBR/L Right-hand shown L1 L 93° f φD K° φd min Ordering code S16Q-SVUBR/L-11 S20R-SVUBR/L-11 S20R-SVUBR/L-16 S25R-SVUBR/L-16 S32S-SVUBR/L-16 S40T-SVUBR/L-16 S50U-SVUBR/L-16
