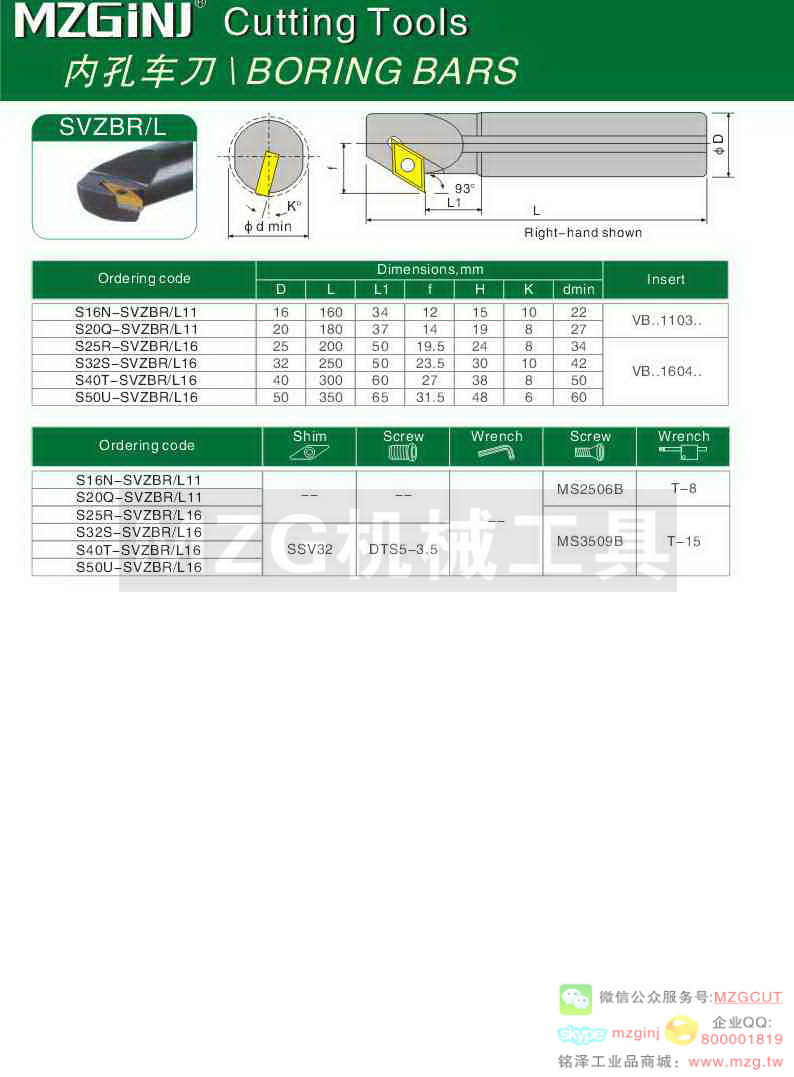

内孔车刀 \ BORING BARS R Cutting Tools Cutting Tools R Insert Shim Wrench Screw Screw Wrench VB..1103.. T-8 MS2506B VB..1604.. T-15 SSV32 MS3509B DTS5-3.5 -- -- -- SVZBR/L Right-hand shown φD 93° L1 L f K° φd min Ordering code Dimensions,mm D L L1 f H K dmin S16N-SVZBR/L11 S20Q-SVZBR/L11 S25R-SVZBR/L16 S32S-SVZBR/L16 S40T-SVZBR/L16 S50U-SVZBR/L16 16 20 25 32 40 50 160 180 200 250 300 350 34 37 50 50 60 65 12 14 19.5 23.5 27 31.5 15 19 24 30 38 48 10 8 8 10 8 6 22 27 34 42 50 60 Ordering code S16N-SVZBR/L11 S20Q-SVZBR/L11 S25R-SVZBR/L16 S32S-SVZBR/L16 S40T-SVZBR/L16 S50U-SVZBR/L16
