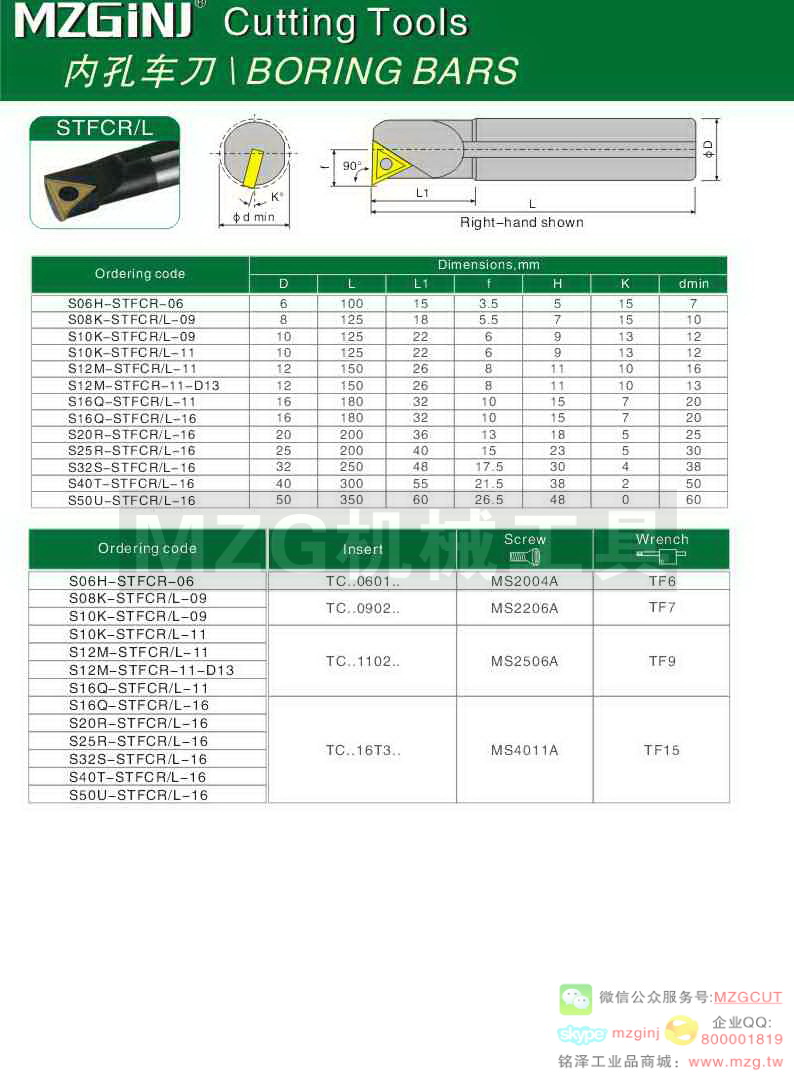

内孔车刀 \ BORING BARS R Cutting Tools Cutting Tools R 15 15 13 13 10 10 7 7 5 5 4 2 0 7 10 12 12 16 13 20 20 25 30 38 50 60 TC..0601.. TC..0902.. TC..1102.. TC..16T3.. MS2004A MS2206A MS2506A MS4011A TF6 TF7 TF9 TF15 Insert K dmin Screw Wrench S06H-STFCR-06 S08K-STFCR/L-09 S10K-STFCR/L-09 S10K-STFCR/L-11 S12M-STFCR/L-11 S12M-STFCR-11-D13 S16Q-STFCR/L-11 S16Q-STFCR/L-16 S20R-STFCR/L-16 S25R-STFCR/L-16 S32S-STFCR/L-16 S40T-STFCR/L-16 S50U-STFCR/L-16 6 8 10 10 12 12 16 16 20 25 32 40 50 100 125 125 125 150 150 180 180 200 200 250 300 350 15 18 22 22 26 26 32 32 36 40 48 55 60 3.5 5.5 6 6 8 8 10 10 13 15 17.5 21.5 26.5 5 7 9 9 11 11 15 15 18 23 30 38 48 Ordering code Dimensions,mm D L L1 f H STFCR/L Right-hand shown K° φd min L1 L 90° f φD S06H-STFCR-06 S08K-STFCR/L-09 S10K-STFCR/L-09 S10K-STFCR/L-11 S12M-STFCR/L-11 S12M-STFCR-11-D13 S16Q-STFCR/L-11 S16Q-STFCR/L-16 S20R-STFCR/L-16 S25R-STFCR/L-16 S32S-STFCR/L-16 S40T-STFCR/L-16 S50U-STFCR/L-16 Ordering code
