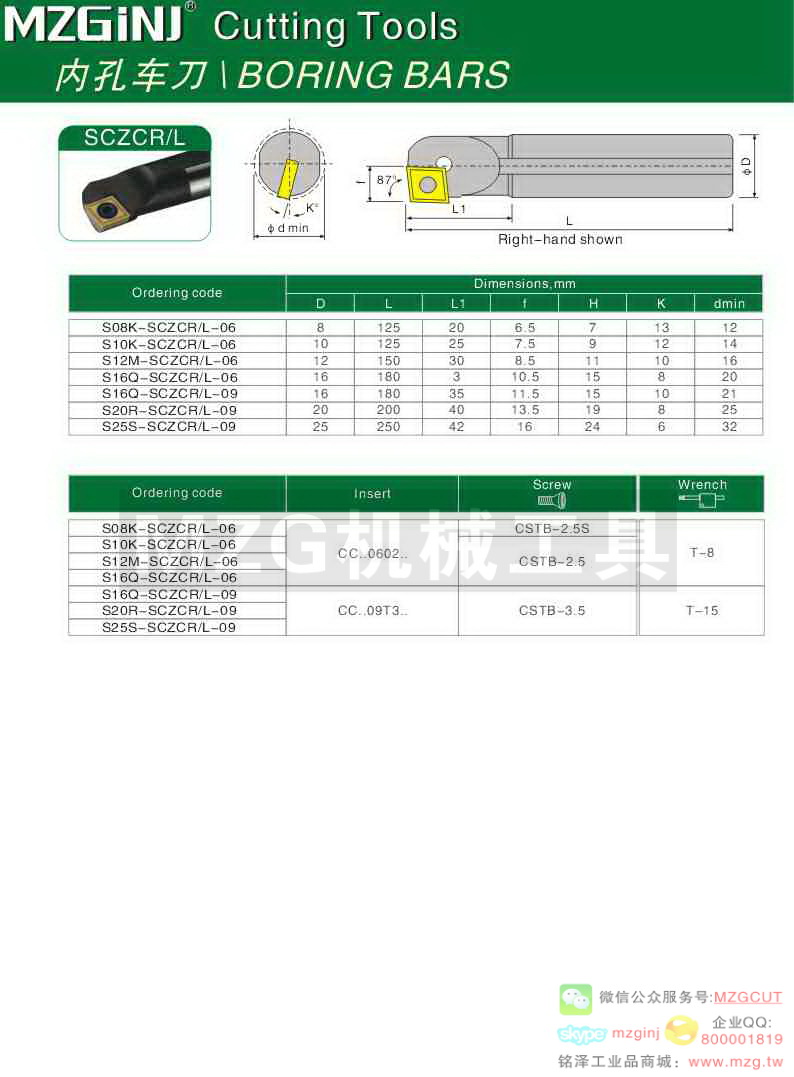

内孔车刀 \ BORING BARS R Cutting Tools Cutting Tools R SCZCR/L Insert Ordering code Dimensions,mm D L L1 f H K dmin Screw Wrench 8 10 12 16 16 20 25 S08K-SCZCR/L-06 S10K-SCZCR/L-06 S12M-SCZCR/L-06 S16Q-SCZCR/L-06 S16Q-SCZCR/L-09 S20R-SCZCR/L-09 S25S-SCZCR/L-09 125 125 150 180 180 200 250 20 25 30 3 35 40 42 6.5 7.5 8.5 10.5 11.5 13.5 16 7 9 11 15 15 19 24 12 14 16 20 21 25 32 13 12 10 8 10 8 6 CSTB-2.5S CC..0602.. T-8 CSTB-2.5 CSTB-3.5 CC..09T3.. T-15 Right-hand shown K° φd min L1 L 87° f φD Ordering code S08K-SCZCR/L-06 S10K-SCZCR/L-06 S12M-SCZCR/L-06 S16Q-SCZCR/L-06 S16Q-SCZCR/L-09 S20R-SCZCR/L-09 S25S-SCZCR/L-09
