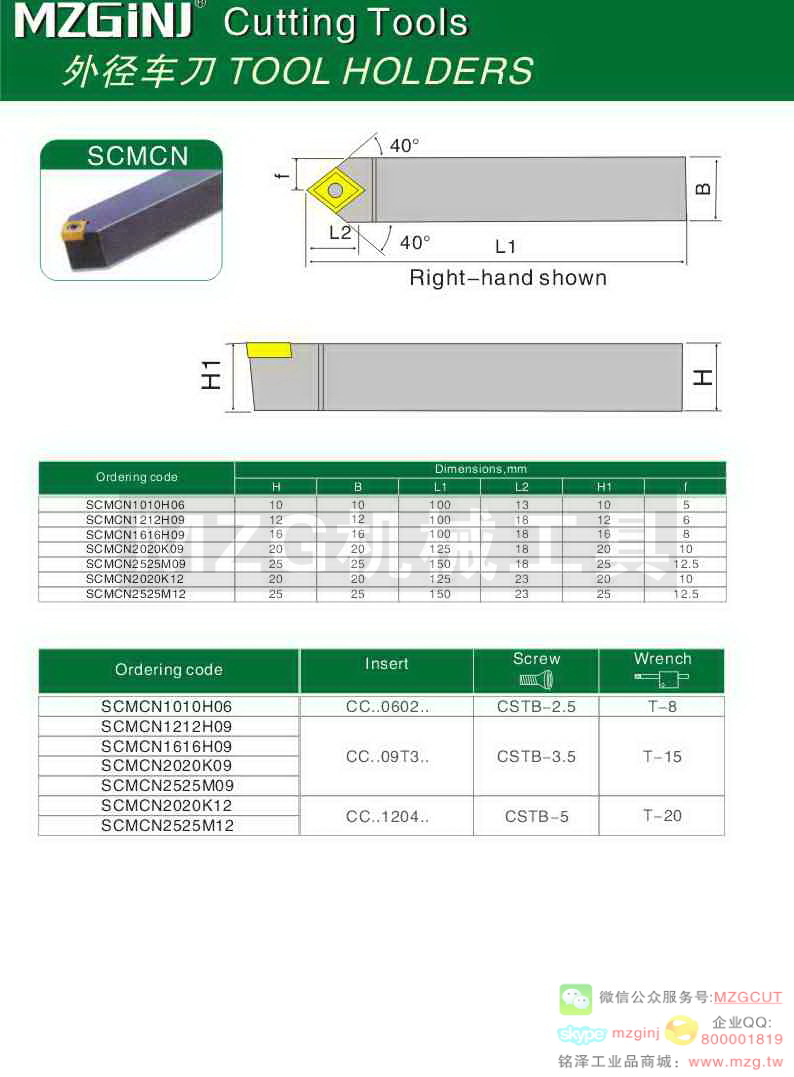

外径车刀 TOOL HOLDERS R Cutting Tools Cutting Tools R Insert Screw Wrench Ordering code Dimensions,mm H B L2 H1 f L1 SCMCN1010H06 SCMCN1212H09 SCMCN1616H09 SCMCN2020K09 SCMCN2525M09 SCMCN2020K12 SCMCN2525M12 10 12 16 20 25 20 25 10 12 16 20 25 20 25 100 100 100 125 150 125 150 13 18 18 18 18 23 23 10 12 16 20 25 20 25 CC..0602.. CSTB-2.5 T-8 5 6 8 10 12.5 10 12.5 CC..09T3.. CSTB-3.5 T-15 CC..1204.. CSTB-5 T-20 SCMCN Right-hand shown f l2 40° 40° l1 b h1 h Ordering code SCMCN1010H06 SCMCN1212H09 SCMCN1616H09 SCMCN2020K09 SCMCN2525M09 SCMCN2020K12 SCMCN2525M12
