| 产品基本信息 |
 |
| 产品名称: |
钨钢微小径内孔搪刀 鎢鋼微小徑內孔搪刀 THROW-AWAY INSERT CARBIDE BORING BAR |
| 产品型号: | |
| 浏览人次: |
55 |
| 发 布 者: |
mzginj |
| 发布日期: |
2011-01-21 13:15:51 |
 |
|
| 产品介绍 |

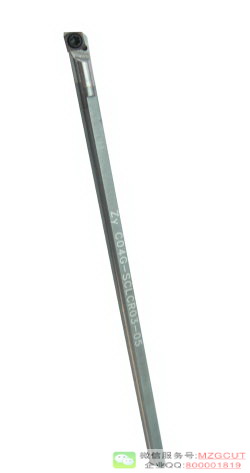

钨钢微小径内孔搪刀 鎢鋼微小徑內孔搪刀 THROW-AWAY INSERT CARBIDE BORING BAR
|
規格
Ordering code
| d | L | 最小塘孔徑 Range
| 使用刀片 Insert
| 螺絲 Screw
| | D04W-CEB5 | 4 | 90 | 5.6 | CC03 | M1.8 | | D04W-WEB5.5 | 4 | 90 | 5.5 | WB06 | M2 | | D05W-CEB06 | 5 | 100 | 6 | CC03 | M1.8 | | D05W-WEB06 | 5 | 100 | 6 | WB06 | M2 | | D06W-TEB07 | 6 | 110 | 7 | TB07 | M2 | | D06W-CEB07 | 6 | 110 | 7 | CC04 | M2.2 | | D06W-WEB07 | 6 | 110 | 7 | WB06 | M2 | | D08W-TEB10 | 8 | 125 | 10 | TP08 | M2.2 |
|
| | | 配件:側固套筒 | 套筒型號 Ordering code
| D1 | D | L | | SH-0416-60 | 04 | 16 | 60 | | SH-0516-60 | 05 | 16 | 60 | | SH-0616-60 | 06 | 16 | 60 | | SH-0716-60 | 07 | 16 | 60 |
|
|
|
|
|
